MILTECH 304 Ultra-Compact Rugged Fast Ethernet Switch - 4 Port

Key Features
Product Type:Ethernet switch
Management:Unmanaged
Ports:
4 x 10/100M Copper
Connectors:
Power: SCE2
LAN: SCE2
Designed to Meet:MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:3.24" X 2.09" X 1.02"82.2mm X 53mm X 26mm
Weight:4.59oz130g
Operating Temp.:-45°C to 85°C
Power input:28VDC, 2W

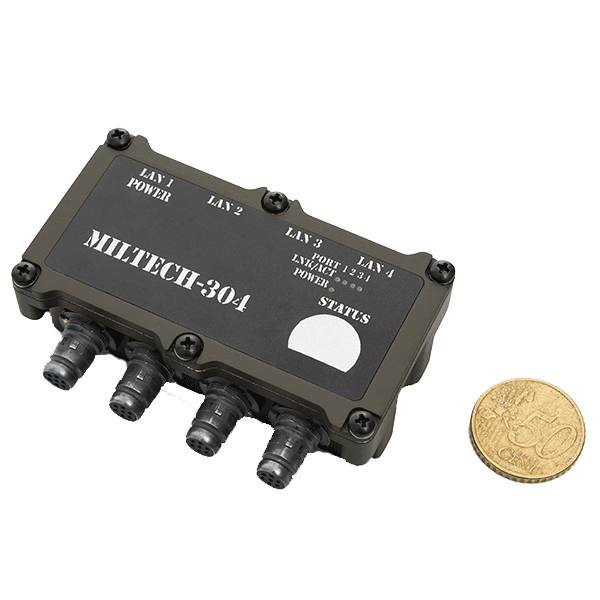

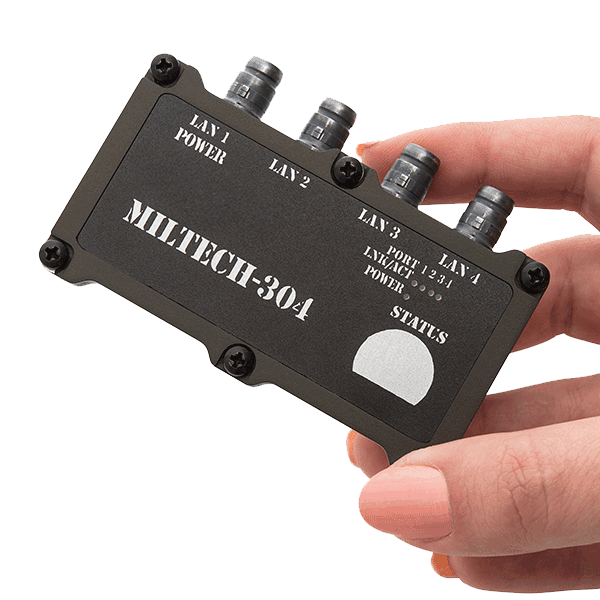

MILTECH 304 is an Ultra-Compact Rugged Fast Ethernet Switch with 4 x 10/100Mbps ports with rugged SCE2 circular connectors.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-304-000 4 x 10/100 TX MIL-STD rugged switch
MILTECH 304 Additional configurations available
  •  2-CBL308LN3M 2-CBL308LN3M LAN Harness for MILTECH308/304 MIL-SCE circular connector to RJ45, 3 meter length
  • 2-CBL308PW3M 2-CBL308PW3M Power + LAN Harness for MILTECH308/304 MIL-SCE circular connector to RJ45 and 2 wire, 3 meter length
Description
Leveraging best-in-class switching technology, the MILTECH 304 serves as a robust commercial off-the-shelf (COTS) solution for rugged LAN connectivity in SPaW sensative platforms such as command post, man packable, and UAV systems.

It operates on readily available up to 28 VDC power and may easily be powered from computers and other devices with USB ports. Mechanical packaging enhancements include for IP67 and MIL-STD-810F for airborne and ground environmental compliance for high reliability.
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
