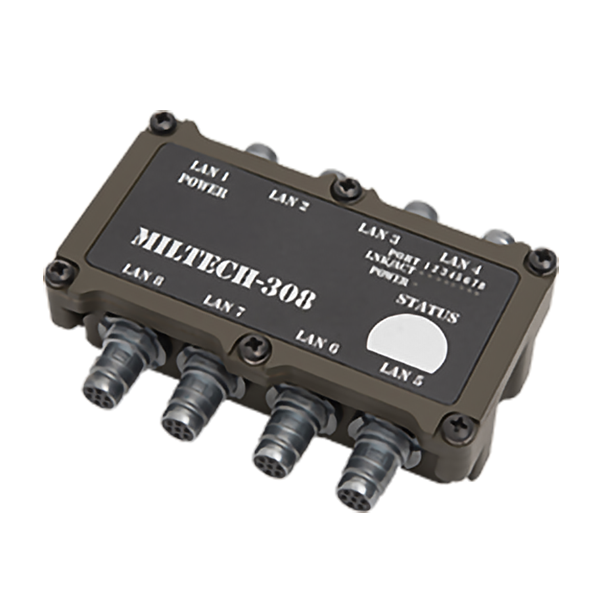

MILTECH 308 Compact Military Unmanaged Fast Ethernet Switch - 8 Port

Key Features
Product Type:Ethernet switch
8 x 10/100M Copper
Power: SCE2
Designed to Meet:MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:3.24" X 2.52" X 1.02"82.2mm X 64.1mm X 26mm
Operating Temp.:-45°C to 85°C
Power input:5VDC, 2W

MILTECH 308 is an Ultra-Compact Rugged Fast Ethernet Switch with 4 x 10/100Mbps ports with rugged SCE2 circular connectors.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

Standard Configurations
Model Description
1-308-001 MILTECH 308, 8x10/100 TH MIL-STD Rugged Switch + wide range power input 5-28VDC
1-308-002 MILTECH 308, 8x10/100 TH MIL-STD Rugged Switch, dust caps attached with cord+ wide range power input 5-28VDC
MILTECH 308 Additional configurations available
  •  2-CBL308LN3M 2-CBL308LN3M LAN Harness for MILTECH308/304 MIL-SCE circular connector to RJ45, 3 meter length
  • 2-CBL308PW3M 2-CBL308PW3M Power + LAN Harness for MILTECH308/304 MIL-SCE circular connector to RJ45 and 2 wire, 3 meter length
Leveraging best-in-class switching technology, the MILTECH 308 serves as a robust commercial off-the-shelf (COTS) solution for rugged LAN connectivity in SPaW sensative platforms such as command post, man packable, and UAV systems.

It operates on readily available 5VDC power and may easily be powered from computers and other devices with USB ports. Mechanical packaging enhancements include for IP67 and MIL-STD-810F for airborne and ground environmental compliance for high reliability.
Tailored Products to Meet Your Requirements

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
