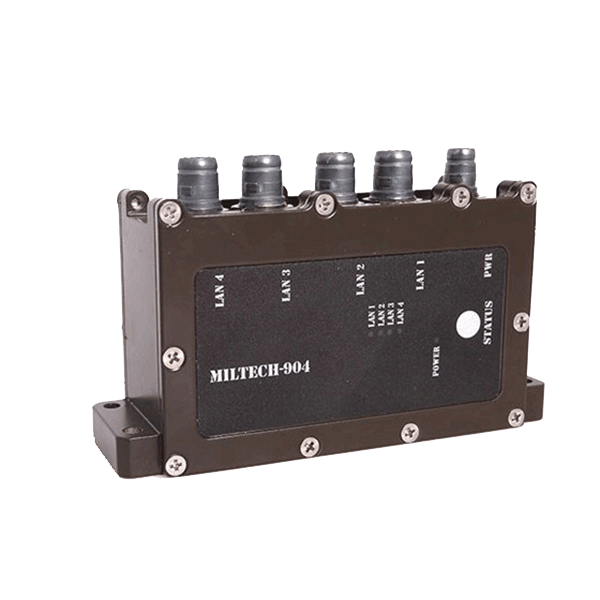

MILTECH 904 Compact Military Gigabit Ethernet Managed Switch - 4 Port

Key Features
Product Type:Ethernet switch
Management:Managed
Ports:
4 x 10/100/1000M Copper
Connectors:
Power: SCE2
LAN: SCE2
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:4.02" X 2.89" X 1.42"102mm X 73.3mm X 36mm
Weight:13.05oz370g
Operating Temp.:-45°C to 85°C
Power input:24VDC (16 - 36VDC), 5W

The MILTECH 904 is a 4 triple-speed (10/100/1000Mbps) port, ultra-compact, fully- managed military grade Ethernet switch with advanced Layer 3 static routing capabilities. It is specifically designed for complex traffic applications featuring IEEE-STD-1588 (PTP) Capabilities and Synchronous Ethernet (SyncE).

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-904-001 Manage Military Grade Gigabit Ethernet Switch, 4 x 10/100/1000TX
1-904-101 Enhanced Managed Military Grade Gigabit Ethernet Switch, 4 x 10/100/1000TX
MILTECH 904 Additional configurations available
  • 2-CBL9028LAN 2-CBL9028LAN 3M lan harness
  • 2-CBL918PWR3M 2-CBL918PWR3M 3M power harness
  • 2-CBL9028LN+ 2-CBL9028LN+ 3M lan and console harness, SCE2 to RJ45 + DB9
Description

The MILTECH 904 switch leads the industry in functionality, size, weight, power and cost (SWaP-C). It saves valuable real estate on mobile platforms such as unmanned and compact aerial platforms, mobile ground vehicles and UGVs, autonomous surface and underwater craft.

Advanced network features include switching protocols, on-device IPv4 and IPv6 static routing between VLANs, traffic prioritization (QoS), and bandwidth aggregation. Security functions include accounting, authentication and authorization (AAA) via TACACS and/or RADIUS servers, and dark Mode operation. Authorization Levels allow multiple users to have up to 15 different levels of access to switch management to greatly enhance the security of any network.

Its mechanical packaging enhancements, including ruggedized SCE2 circular connectors, is designed for MIL-STD-810F airborne and ground environmental compliance and high reliability.



Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
