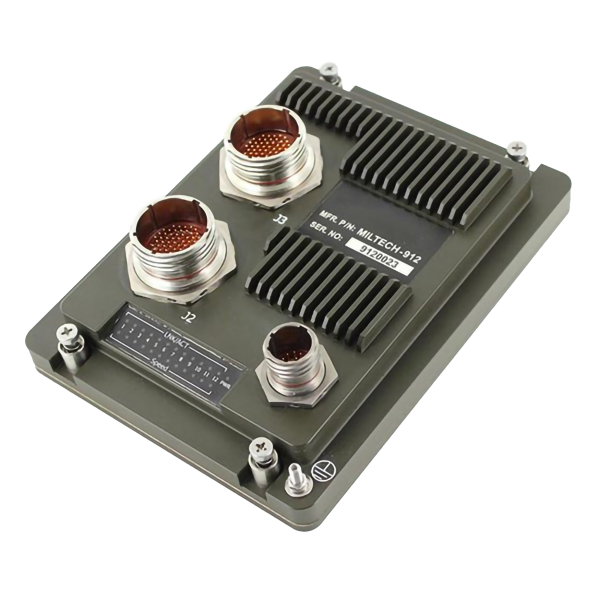

MILTECH 912 Rugged Military Gigabit Ethernet Switch - 12 Port

Key Features
Product Type:Ethernet switch
Management:Managed
Ports:
12 x 10/100/1000M Copper
Connectors:
Power: D38999
LAN: D38999
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP67
Dimensions:7.01" X 5.35" X 1.85"178.1mm X 136mm X 47.1mm
Weight:40.57oz1150g
Operating Temp.:-45°C to 85°C
Power input:24VDC (16 - 36VDC), 7W

The MILTECH 912 is a 12 port (divided between two MIL-D-38999 connectors) MIL-STD, rugged, managed Layer 2 Ethernet switch with advanced Layer 3 static routing capabilities. It is specifically designed for complex traffic applications featuring IEEE-STD-1588 (PTP) Capabilities and Synchronous Ethernet (SyncE).

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-912-000 Military Rugged, 12 x 10/100/1G TX, Managed Switch with Nickle Plated D38999 Connectors
1-912-001 Military Rugged, 12 x 10/100/1G TX, Managed Switch with Olive-Drab D38999 Connectors
1-912-002 Military Rugged, 12 x 10/100/1G TX, Managed Switch with Marine Aluminum Bronze D38999 Connectors
1-912-003 Military Rugged, 12 x 10/100/1G TX, Managed Switch with Olive-Drab D38999 Connectors (J2 Keyway A, J3 Keyway N)
1-912-101 Enhanced Military Rugged 12 x 10/100/1G TX, Managed Switch with Olive-Drab D38999 Connectors
1-912-102 Enhanced Military Rugged, 12 x 10/100/1G TX, Managed Switch with Marine Aluminum Bronze D38999 Connectors
MILTECH 912 Additional configurations available
  • 2-CBL912PWR 2-CBL912PWR 3M power harness
  • 2-CBL912LANCON 2-CBL912LANCON 3M lan and console harness, 38999 to 4 x RJ45 + 1 x DB9
  • 2-CBL918PWR3M 2-CBL918PWR3M 3M power harness
Description

The compact MILTECH 912 saves valuable real estate on mobile platforms such as unmanned and manned airborne platforms, ground and underwater vehicles. Its advanced network features include on-device IPv4 and IPv6 unicast routing between virtual LANS (VLANS), traffic prioritization (QoS), and bandwidth aggregation. Layer 3 on-device IPv4 and IPv6 static routing allows pre-configured routing between VLANs.

The MILTECH 912’s gigabit speeds and MIL-STD-1275 28VDC power bus make it instantly compatible with network device and power systems
