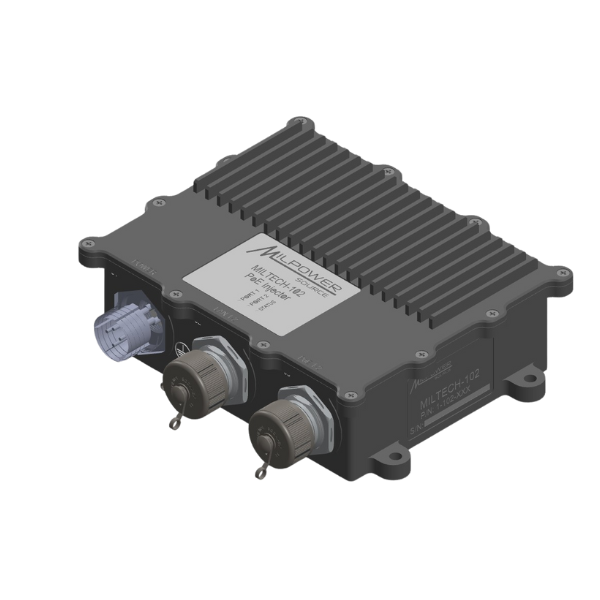

MILTECH 102 Dual Gigabit Ethernet Port PoE/PoE+/PoE++ Injector With 130W Power Budget

Download Data Sheet Here

Key Features

ImperialMetric

Management:	Unmanaged
Ports:	2 x 10/100/1000M Copper + PoE 2 x 10/100/1000M Copper
Connectors:	Power: D38999 LAN: D38999
Designed to Meet:	MIL-STD-1275 \| MIL-STD-704 \| MIL-STD-810 \| MIL-STD-461 \| IP67
Dimensions:	6.5" X 5.71" X 2.17"165mm X 145mm X 55mm
Weight:	28.22oz800g
Operating Temp.:	-40°C to 85°C
Power input:	24VDC (16 - 50VDC), 160W
Power output:	48VDC, 2A per port
Special Features:	PoE

The MILTECH 102 is a compact, rugged, standalone Dual Port PoE/PoE+/PoE++ Injector designed to provide Power over Ethernet (PoE) capabilities to standard 100M/1G interfaces. This injector supports two 1G Ethernet ports, offering high-speed data transfer while providing up to 100W of power per port.

Standard Configurations

	Model	Description
	MILTECH 102	Additional configurations available
