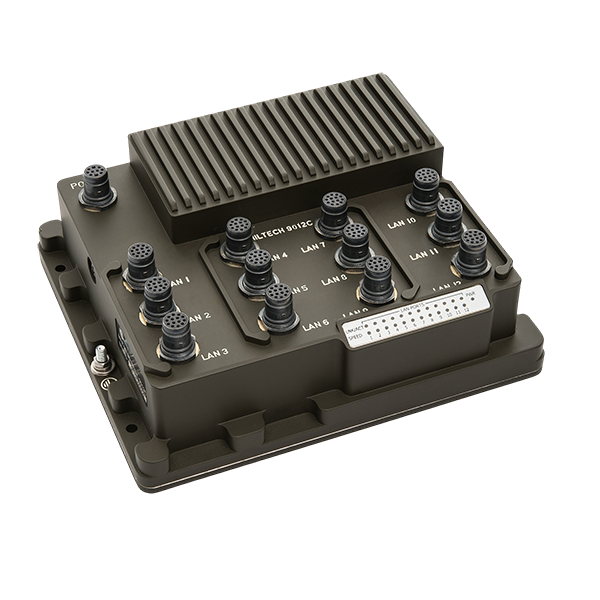

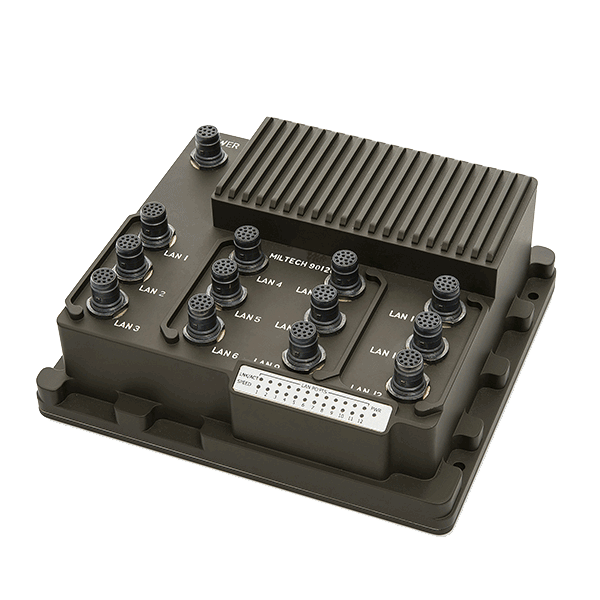

MILTECH 9012C
Compact Military-Grade Managed 12-Port Gigabit Ethernet Router/Switch with Cisco® IOS® External Connectivity

Key Features

Product Type:Router
Management:Managed
Ports:
12 x 10/100/1000M Copper
Connectors:
Power: SCE2
LAN: SCE2
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP67
Dimensions:6.54" X 5.67" X 2.68"166mm X 144mm X 68mm
Weight:38.8oz1100g
Operating Temp.:-45°C to 85°C
Power input:24VDC (18 - 72VDC), 25W
The MILTECH 9012C is a MIL-STD, fully- managed Layer 2 Ethernet switch and a Layer 3 Ethernet router with 12 triple-speed (10/100/1000Mbps) ports + SBC with optional Cisco ESR.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY

Standard Configurations

Model Description
1-9012C-000 Military Grade Cisco Router with 12 x 10/100/1000TX ports
1-9012C-001 12 Port Internet Switch + 10MBPS Cisco Router License.
1-9012C-002 12 Port Internet Switch + 25MBPS Cisco Router License.
1-9012C-003 12 Port Internet Switch + 50MBPS Cisco Router License.
1-9012C-004 12 Port Internet Switch + 100MBPS Cisco Router License.
1-9012C-CG-000 Military Grade Cisco Router with 12 x 10/100/1000TX ports + GPS
MILTECH 9012C Additional configurations available
  • 2-CBL9012CLAN 2-CBL9012CLAN 3M lan harness
  • 2-CBL9012CPWR 2-CBL9012CPWR 3M power harness
  • 2-CBL9012CLN+ 2-CBL9012CLN+ 3M lan and console harness, SCE2 to RJ45 + DB9
  • 2-CBL9012CP12 2-CBL9012CP12 MILTECH9012c-mgmt cable

Description

TThe MILTECH 9012C is a member of the MILTECH 9012 rugged switch/routerfamily that offers flexible alternatives for LAN, LAN/WAN, and customizable networking.The MILTECH 9012C provides the best of both worlds in a single package – with our proven line-rate Layer 3 internal routing/switching and a COM Express computing platform that is designed to host a wide range of single-board computers (SBCs). You can host specialized functions such as:

-An integrated Cisco-IOS industry-standard router with security and mobility protocols
-Specialized networking software based on Linux (ie: iptables firewall)
-Unique encryption and security measures
-Robotic limb control using JAUS
-Vehicle management

It provides USB, RS-232, 4 x Open GND Input/output (discrete signals) and a GPS, all directly connected and controlled by the SBC. The SBC's can run any LINUX and Windows operating system and are equipped with two additional mini SATA cards to enable extended storage capacity for tactical use.

It features both L2/L3 network switching and routing capabilities, including virtual LANS (VLANS), traffic prioritization/QoS, IPv4/IPv6 support, and bandwidth aggregation. The integrated Cisco ESR router connects to external wired and wireless networks using IPv4/IPv6 routing and multicast protocols that include BGP, OSPF, GRE, EIGRP, CDP, IGMP and MLD. Advanced QoS helps maintain adequate connection speeds for voice and video traffic and external communications is secured with the latest encryption algorithms and integrated threat management.

The MILTECH 9012C uses industry-standard 24VDC power and is designed for MIL-STD-810F, MIL-STD-461E, MIL-STD-1275B & MIL-STD-704A airborne, ground mobile environmental, EMI/RFI compliance with high reliability. The MILTECH 9012C is VICTORY standard certified by U.S. Army Combat Capabilities Development Command (CCDC) Ground Vehicle Systems Center.

Tailored Products to Meet Your Requirements

mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us at (603) 267-8865 to discuss your requirements. Configurations created for specific requirements will be assigned a new variant part number.
