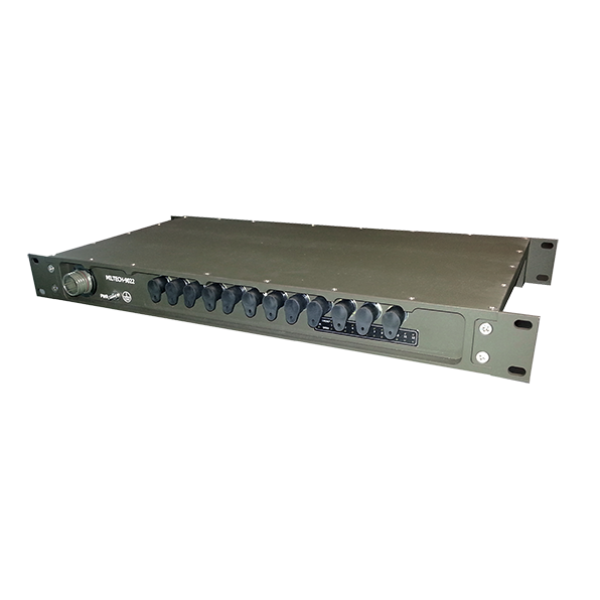

MILTECH 9022 Military Managed 12 Ports with 4 x 10G Fiber Ports Switch/Router

Key Features
Product Type:Router
Management:Managed
Ports:
12 x 10/100/1000M Copper
4 x 1/10G Fiber
Connectors:
Power: D38949
LAN: SCE2
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP67
Dimensions:18.98" X 9.53" X 1.73"482mm X 242mm X 44mm
Weight:109.35oz3100g
Operating Temp.:-45°C to 85°C
Power input:24VDC (18 - 32VDC)
220VAC (90 - 230VAC)
20W

The MILTECH 9022 is a rugged, MIL-STD 1U rack-mountable Layer 2 Ethernet switch with dynamic routing supporting 12 X 10/100/1000Mbps ports and 4 X 1G/10G fiber ports.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-9022-000 19” 12XL3 Gigabit Switch 1U AC Power
1-9022-001 19” 12XL3 Gigabit 1U AC Power+4x1G SM Fiber 30KM
1-9022-002 19” 12XL3 Gigabit Switch 1U DC Power
MILTECH 9022 Additional configurations available
Description
The MILTECH 9022 is designed for large mobile and shipboard platforms that require connection and process a large about of data at 1 Gbps and higher speeds at 10 Gbps. Its network switching and routing capabilities, include virtual LANS (VLANS), traffic prioritization/QoS, IPv4/IPv6 support, and bandwidth aggregation. Additionally, it supports Layer 3 dynamic routing. 24VDC power make it instantly compatible with network devices and power systems. An optional redundant power connection adds to overall system survivability.

The unit is designed for MIL-STD-810F, MIL-STD-461E, MIL-STD-1275B airborne, ground mobile environmental, EMI/RFI compliance and high reliability.
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us at (603) 267-8865 to discuss your requirements. Configurations created for specific requirements will be assigned a new variant part number.
