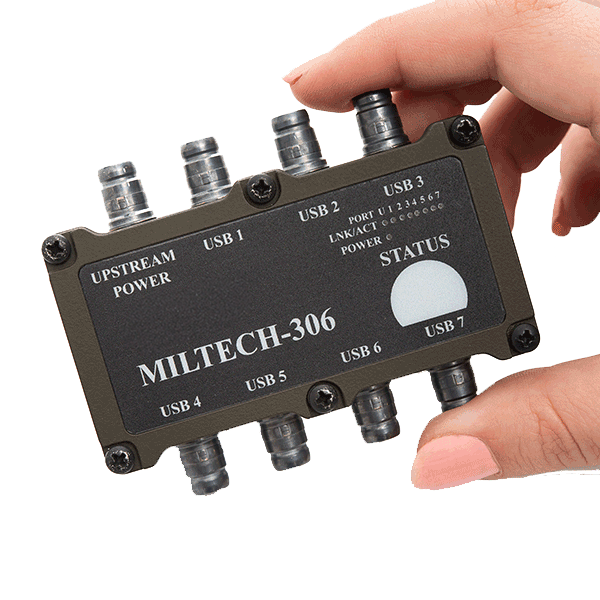

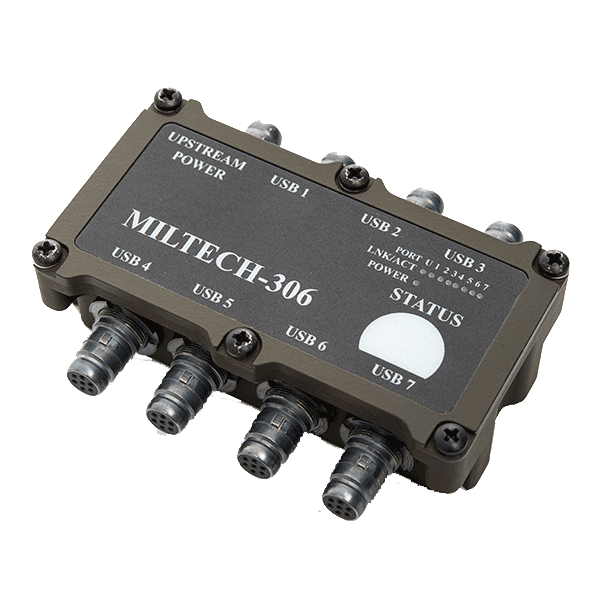

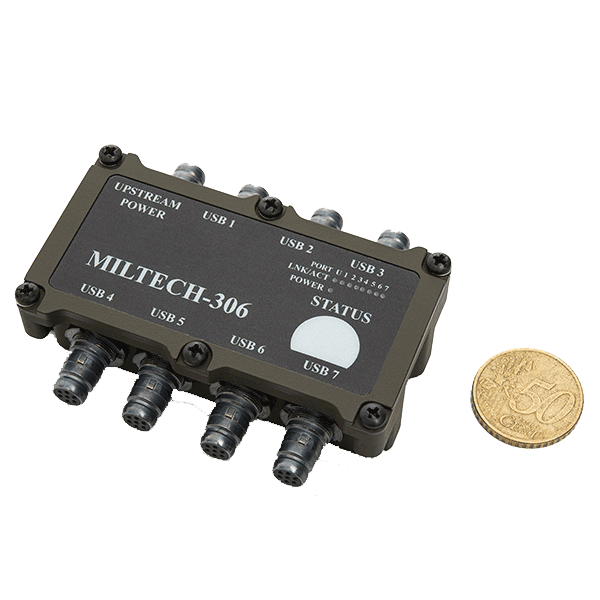

MILTECH 306
Miniature Rugged USB HUB

Key Features

Product Type:USB
Management:Unmanaged
Ports:
7 x USB2.0
Connectors:
Power: SCE2
USB: SCE2
Designed to Meet:MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:3.24" X 2.52" X 1.02"82.2mm X 64.1mm X 26mm
Weight:4.94oz140g
Operating Temp.:-45°C to 85°C
Power input:5VDC, 2W
MILTECH 306 is a MIL-STD rugged USB offering 7+1 USB 2.0 Ports,

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY

Standard Configurations

Model Description
1-306-000 8 Ports USB HUB VBUS powered
1-306-001 8 Ports USB HUB External 5V powered
1-306-002 8 Ports USB HUB
MILTECH 306 Additional configurations available

Description

One of the smallest solutions in the industry, the MILTECH 306 reduces load on the soldier, providing more space for equipment that increases mission awareness and success.

It provides networked USB connectivity to computing devices, heads-up displays, storage and other future-soldier devices for soldiers and man-packable applications.

The unit operates on readily available 5VDC power and may easily be powered from computers and other devices with USB ports.

Tailored Products to Meet Your Requirements

mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us at (603) 267-8865 to discuss your requirements. Configurations created for specific requirements will be assigned a new variant part number.
