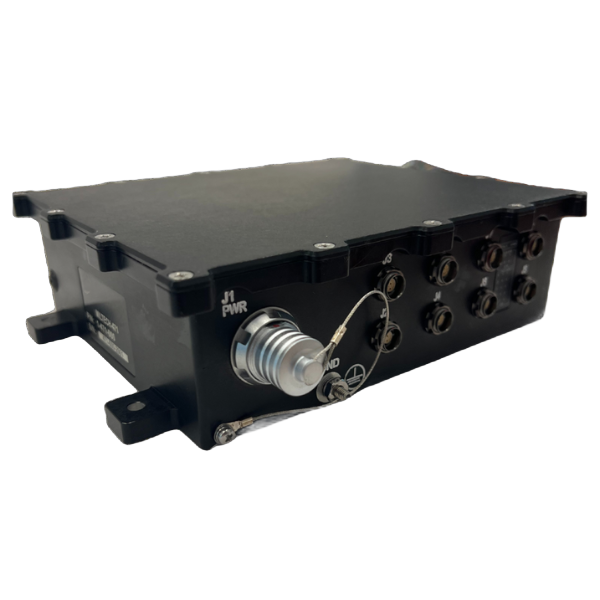

MILTECH 471 Military Rugged USB2/USB3 to Ethernet Smart HUB

Key Features
Product Type:USB
Management:Managed
Ports:
2 x 10/100/1000M Copper
5 x USB2/3
1 x USB Management Port
Connectors:
LAN: ODU
USB: ODU
Power: ODU
Management: ODU
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP 68
Dimensions:6.84" X 8.02" X 2.37"173.8mm X 203.8mm X 60.2mm
Operating Temp.:-40°C to 80°C
Power input:24VDC (18 - 48VDC), 489W
Power output:20VDC, 5A per port

Enabling ethernet communication between several USB devices and charging them.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
MILTECH 471 Additional configurations available
  • 29-040446-00 29-040446-00 J1 - MT471 - Power Cable
  • 29-040447-00 29-040447-00 J2-J6 - MT471 - USB3 Cable
  • 29-040448-00 29-040448-00 J7 & J9 - MT471 - LAN Cable
  • 29-040449-00 29-040449-00 J8 - MT471 - USB2 MNG Cable
Description
The MILTECH 471 Module is a member of ISPDS (Integrated Soldier Power and Data Management Systems) product line. This unit provides connectivity for 5 external USB2/3 devices (e.g. Tablets/Smartphones) and 2 external 10/100/1000BT Ethernet ports. Using its integrated Ethernet Switch and USB/Ethernet bridges the MILTECH471 allows network connectivity to all five external USB2/3 ports while providing simultaneous fast charge functionality based on USB Power Delivery technology.
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
