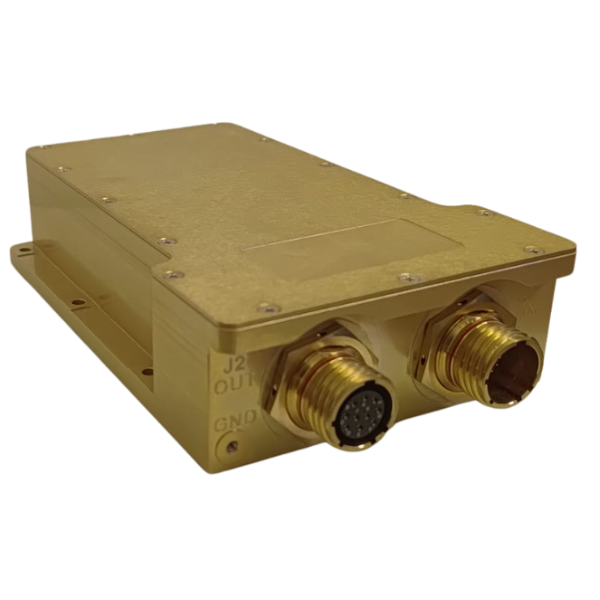

M7429 Series DC-DC Power Supplies

Key Features
Product Type:Power Supply (Converter)
Input:18-50VDC
Output(s):One
Output Power:300W
Efficiency:88%
Operating Temp.:-55°C to 80°C
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461
Standard Configurations
Model Power Output 1
M7429-800 100W 5V @ 20A
M7429-801 240W 12V @ 20A
M7429-802 300W 15V @ 20A
M7429-803 300W 24V @ 12.5A
M7429-804 299.6W 28V @ 10.7A
M7429-805 297.6W 48V @ 6.2A
M7429 Additional configurations available

* Our products are configured to comply with EU REACH regulations. Contact Us today to learn more.

Base Specifications
Form Factor:Baseplate Mount
Weight:126.99oz3600g
Dimensions:10.63" X 5.91" X 2.4"270mm X 150mm X 61mm
*

Product specifications and features subject to change without notice.
Please contact our factory before placing order.

Description

SIngle-Output, 300W DC TO DC baseplate cooled power supply, seal unit.
