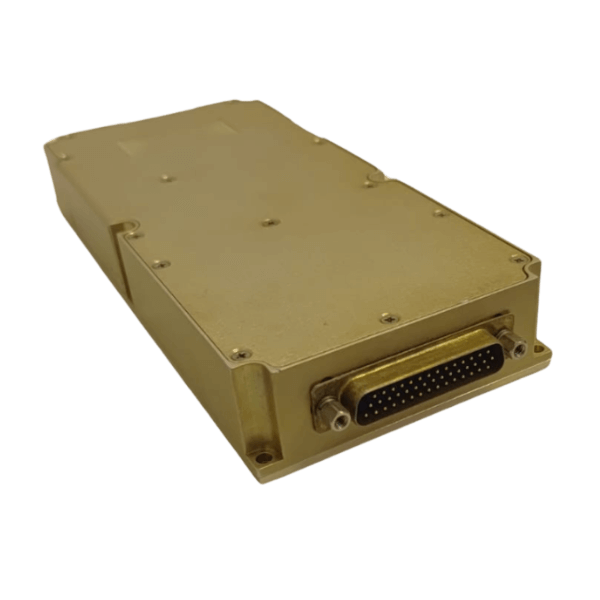

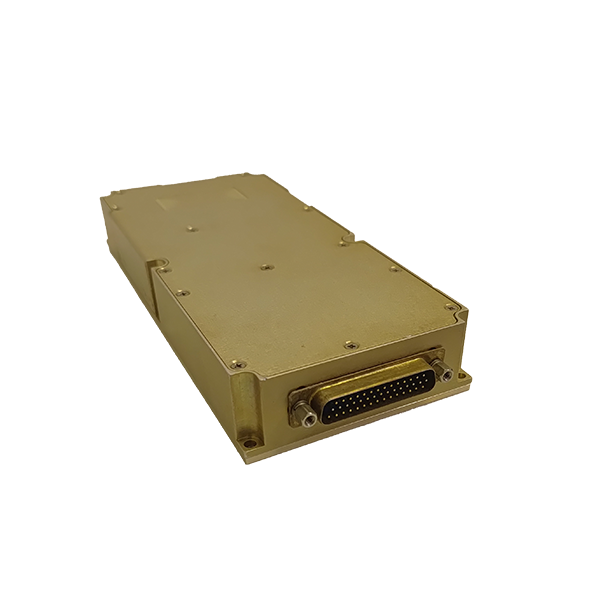

M8696 Series DC-DC Power Supplies

Key Features
Product Type:Power Supply (Converter)
Input:DC
Output(s):Four
Output Power:200W
Efficiency:80-85%
Operating Temp.:-46°C to 85°C
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461
Standard Configurations
Model Power
M8696 Additional configurations available

* Our products are configured to comply with EU REACH regulations. Contact Us today to learn more.

Base Specifications
Form Factor:Baseplate Mount
Weight:21.16oz600g
Dimensions:6.99" X 3.19" X 1.1"177.55mm X 81.03mm X 27.94mm
*

Product specifications and features subject to change without notice.
Please contact our factory before placing order.

Output Range(V min to V max @ A max)
#1 12V to 48V @ 10.5V-36V / 18V-48VA
Description

A QUAD-OUTPUT, 200W DC/DC POWER SUPPLY
