M9516 Series 8 Channels

Key Features
Product Type:PDU
Input:6-33VDC
Output(s):Eight
Output Power:200A
Operating Temp.:-55°C to 105°C
Designed to Meet:MIL-STD-1275 | DEF Stan 61-5 | MIL-STD-810 | MIL-STD-461
Standard Configurations
Model Power Output 1 Output 2 Output 3 Output 4 Output 5 Output 6 Output 7 Output 8
M9516-101 200A 28V @ 25A 28V @ 25A 28V @ 25A 28V @ 25A 28V @ 25A 28V @ 25A 28V @ 25A 28V @ 25A
M9516 Additional configurations available

* All of our products can be configured to comply with EU REACH regulations. Contact Us today to learn more.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY
Base Specifications
Form Factor:VME
Weight:22.2oz629.36g
Dimensions:6.95" X 4.64" X 0.95"176.53mm X 117.86mm X 24.13mm
Current Share:Standard
Communication Protocol: CAN, RS-485
*

Product specifications and features subject to change without notice.
Please contact our factory before placing order.

Description

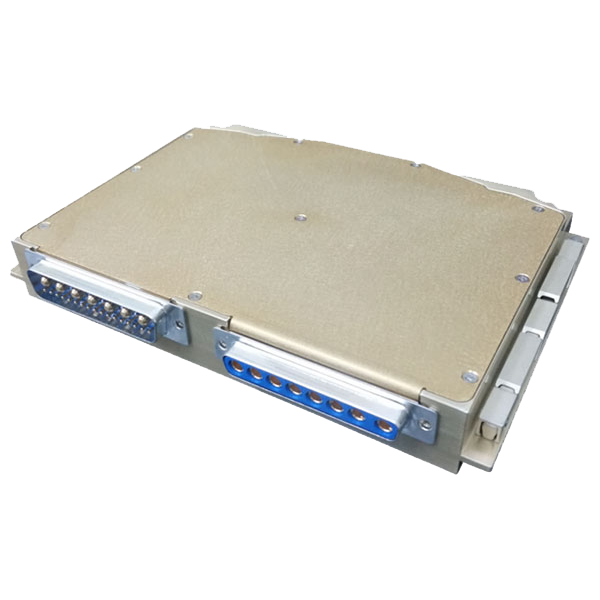

M9516 is an 8-channel VME form factor power distribution unit, designed for airborne and ground applications. This power management solution distributes 28VDC (current is up to 200A) through overload and short-circuit protected switches. The M9538 supports CAN and RS-485 communication to control and configure the device. Complies with MIL-STD-1275, MIL-STD-461E & MIL-STD-810. Packed in a small form factor with operating temperature of -55°C to +105°C and altitude of up to 70,000 ft, making it the ultimate PDU solution for UAV applications.

Resources
3D Model (STEP file)
