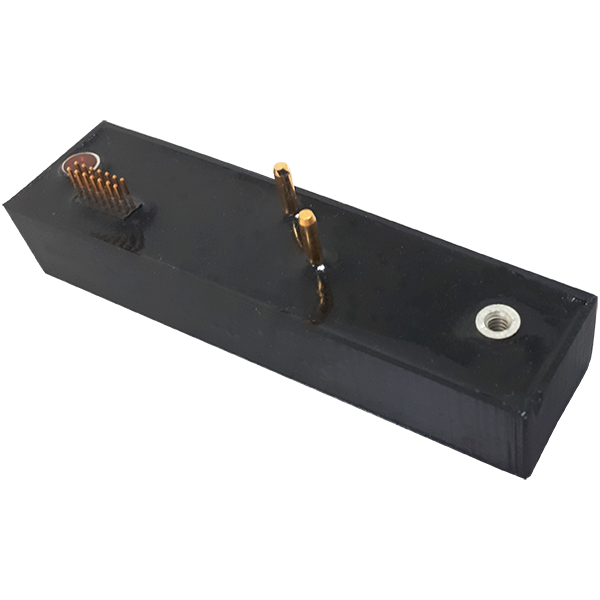

M9526 Series Switch Modules

Key Features
Product Type:PDU
Input:1-50VDC
Output(s):One
Output Power:30A
Operating Temp.:-55°C to 125°C
Designed to Meet:MIL-STD-810 | MIL-STD-461
Standard Configurations
Model Power
M9526-Series 30A
M9526 Additional configurations available

* All of our products can be configured to comply with EU REACH regulations. Contact Us today to learn more.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY
Base Specifications
Form Factor:PCB Mount
Weight:0.71oz20g
Dimensions:2.93" X 0.77" X 0.44"74.3mm X 19.6mm X 11.1mm
Communication Protocol: I2C
*

Product specifications and features subject to change without notice.
Please contact our factory before placing order.

Description

The M9526 is a solid state circuit breaker which is the building block for our multi channel power distribution units, PDUs. The individual solid state circuit breaker can operate fully autonomously, it's fully programmable for trip current limits, on/off control, channel sequencing, BIT, voltage and current telemetry. The M9526 enables customers to design their own PDUs. The M9526 input range is nominally 28V but can support between 0 to 50V and is designed to meet MIL-STD-1275, MIL-STD-461 and MIL-STD-810.

Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us at (603) 267-8865 to discuss your requirements. Configurations created for specific requirements will be assigned a new variant part number.
